DIN 2510 Form TF Hexagon Nuts

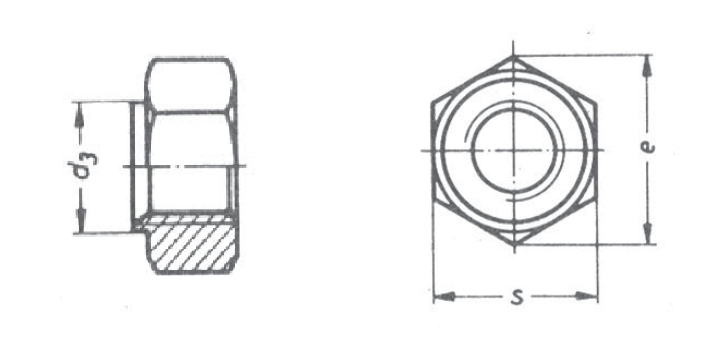

DIN 2510 Form TF Hexagon Nuts Dimensions

DIN 2510 Form TF Dimensions

Thread d1 d2 d3 e m s t Weight (kg/1000 pcs)
Min. Max. Nom. Min. Max. Nom. Min. Max.
M12 21 14.5 24.49 25.41 12 11.48 12.00 22 21.67 22.00 2 31
M16 26 18.5 30.14 31.19 16 15.19 16.00 27 26.67 27.00 2 52
M20 31 22.5 35.57 36.96 20 18.81 20.00 32 31.48 32.00 2 86
M24 35 26.5 40.09 41.58 24 22.81 24.00 36 35.48 36.00 3 124
M27 40 30.5 45.74 47.36 27 25.81 27.00 41 40.48 41.00 3 181
M30 45 33.5 51.39 53.13 30 28.81 30.00 46 45.48 46.00 3 260
M33 49 36.5 55.91 57.75 33 31.81 33.00 50 49.48 50.00 3 330
M36 53.5 39.5 61.31 63.53 36 34.81 36.00 55 54.26 55.00 3 425
M39 58.5 42.5 66.44 66.96 39 - - - - 60 3 560
M42 63.5 45.5 72.09 72.61 42 - - - - 65 3 705
M45 68.5 49.5 77.74 78.26 45 - - - - 70 3 900
M48 73.5 53.5 83.39 83.91 48 - - - - 75 4 1120
M52 78.5 57.5 89.04 89.56 52 - - - - 80 4 1340
M56 83.5 63 94.47 95.07 56 - - - - 85 4 1590
M64 93.5 71 105.77 106.37 64 - - - - 95 4 2230
M72 103.5 79 117.07 117.67 72 - - - - 105 4 2980
M80 113.5 87 128.37 129.34 80 - - - - 115 4 3850
M90 128 97 145.09 145.77 90 - - - - 130 4 5550
M100 143 107 162.04 162.74 100 - - - - 145 5 7700
